铜粉(Cu)

描述

铜粉(Cu)

产品简介

铜粉(Copper Powder,化学式 Cu)是一种具有 极高导电性与导热性 的功能金属粉末,广泛应用于 导电浆料、电极、电镀、电机部件、催化剂与粉末冶金 等领域。
其优异的可塑性与导电性,使其成为电子制造与新材料研发中不可替代的重要原料。

苏州科跃材料科技有限公司提供高纯度(99.7%–99.99%)铜粉,形貌可选 球形、树枝状、片状与不规则粉末,满足从科研实验到工业生产的多种应用需求。


产品详情

铜粉呈 红棕色至亮铜色金属粉末,采用 电解法、雾化法或化学还原法 制备,具有高纯度、低氧含量与优异分散性。

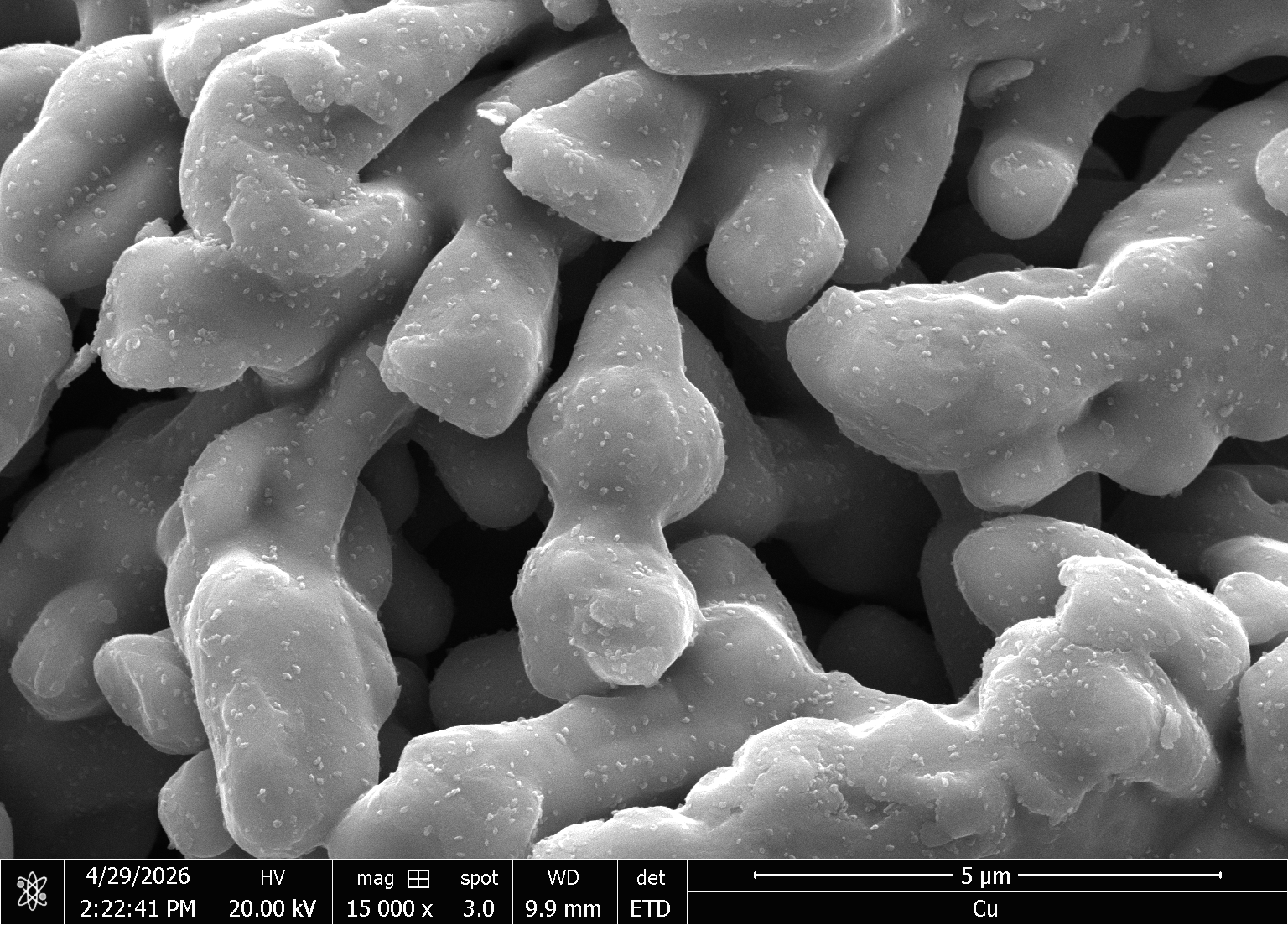

不同形貌适用于不同工艺:球形粉适合导电涂层与3D打印,树枝状粉适用于烧结与导电胶体系。

主要特点:

  • 导电导热性能优异(仅次于银);

  • 高纯度、低氧含量、杂质少

  • 可焊接、可烧结性好

  • 成形性能优良

  • 可定制粒径与形貌结构。


应用领域

  • ⚙️ 粉末冶金:用于电机、电刷、滑环、轴承与结构件;

  • 💡 电子与导电材料:用于导电浆料、铜电极、导电胶;

  • 🔋 新能源与电池:用于锂电池集流体、铜箔与负极材料;

  • ⚗️ 化学催化剂:用于加氢、脱硝与CO反应;

  • 🧪 科研与薄膜沉积:用于溅射靶、蒸发源与复合粉开发。


技术参数

参数 典型值 / 范围 重要性说明
化学式 Cu 高导电金属粉
纯度 99.7% – 99.99% 高纯材料级
外观 红棕色金属粉末 光泽细腻
粒径范围 1 – 75 μm(可提供纳米级 <100 nm) 影响导电与烧结特性
制备方法 电解 / 雾化 / 还原法 适配不同工艺需求
密度 8.96 g/cm³ 高密度金属
熔点 1083°C 热稳定性优良
电导率 5.96×10⁷ S/m 金属中仅次于银
热导率 401 W/m·K 高效散热性能
氧含量 <0.05% 保证导电性能

相关材料对比

材料 主要优势 典型应用
Cu(铜) 高导电、高延展 导电浆料、电极、焊料
Ag(银) 导电性最高 光学与电子镀膜
Al(铝) 轻质、导热好 散热组件与导电胶
Ni(镍) 耐蚀、磁性 电极与催化剂

常见问题(FAQ)

问题 答案
铜粉主要用途是什么? 用于导电浆料、电极、电镀与粉末冶金。
是否导电? 是的,导电性能极高,仅次于银。
是否易氧化? 表面会形成薄氧化膜,建议干燥惰性储存。
是否可用于3D打印? 可,球形铜粉适用于L-PBF与Binder Jet。
是否可用于催化? 可,用于加氢反应与化学还原体系。
熔点是多少? 1083°C。
是否可定制粒径? 可提供 1–150 μm 粒径范围或纳米级。
是否环保? 无毒、可回收,符合 RoHS 与 REACH 要求。
是否适合真空镀膜? 可,用于蒸发源与溅射靶原料。
包装方式? 真空密封、防潮铝箔袋或瓶装。

包装与交付

所有铜粉出厂前均经过 ICP 杂质检测、粒度分布分析与O/N 含量测试
采用 真空密封 + 防潮铝箔袋包装,防止氧化、变色与结块。
提供 100 g、500 g、1 kg、25 kg 等规格,支持科研与工业批量交付。


结论

铜粉以其 卓越的导电导热性能与良好可加工性,在电子、电镀、冶金与能源领域中被广泛采用。
苏州科跃材料科技有限公司可提供多种形貌、粒径与纯度等级的高性能铜粉,满足科研与高端制造需求。

📩 如需了解更多技术参数或获取报价,请联系:sales@keyuematerials.com
