铜丝(Cu)

高纯铜丝具有优异的导电性与延展性,适用于电子、电极、真空蒸发源及科研用途。纯度可达99.999%,表面光洁、无氧化层,可按需求定制直径与包装。

描述

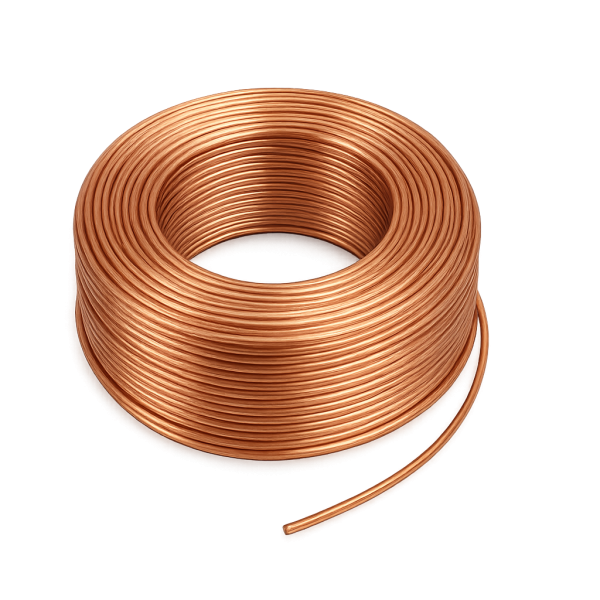

铜丝(Cu Wire)

产品简介

铜丝(Cu Wire)是一种由高纯铜(Purity ≥ 99.9%)制成的导电金属丝材,具有卓越的导电性、导热性和延展性。高纯铜丝广泛应用于电子器件、电气连接、真空蒸发源、科研实验及电极制造等领域。
由于其优异的物理性能与化学稳定性,铜丝是科研与工业制造中最常用、性能最稳定的金属导线之一。

产品详情

苏州科跃材料科技有限公司提供的高纯铜丝采用真空熔炼—拉丝—退火—精抛光工艺制备,产品纯度高、表面光滑、无氧化膜。铜丝符合 ASTM B170、B152 等标准,适用于科研及精密电子应用。

典型规格:

  • 纯度等级:99.9%、99.99%、99.999%

  • 直径范围:0.05 – 5.0 mm

  • 形态:卷丝 / 直丝 / 盘丝

  • 制造工艺:真空熔炼 + 拉丝 + 退火 + 抛光

  • 表面状态:亮铜色 / 去氧化层 / 光亮态

高纯铜丝具有极低的电阻率、良好的抗拉强度与热传导性能,是精密电子器件与真空系统的理想导电材料。

应用领域

铜丝凭借其高导电性与高纯度,在多个高科技行业中得到广泛应用:

  • 电子与电气工业:用于精密连接线、焊接线与导电部件。

  • 真空与薄膜沉积:用于PVD、CVD蒸发源。

  • 电极与电化学系统:用于阳极、阴极与导电桥。

  • 科研与实验设备:作为导电引线与测试元件。

  • 能源与航空航天:用于传感、线圈与导电组件。

技术参数

参数 典型值 / 范围 说明
纯度 99.9% – 99.999% 高纯度降低电阻与杂质影响
密度 8.96 g/cm³ 均匀致密、延展性强
熔点 1083 °C 高温稳定性良好
电导率 59.6 × 10⁶ S/m 卓越导电性能
热导率 401 W/m·K 优异导热性能
延展性 适合精细加工
工艺 真空熔炼 + 拉丝 确保纯净度与光洁度

常见问题(FAQ)

问题 答案
铜丝能否用于真空系统? 可以,表面洁净度高、气体释放率低。
是否可用于蒸发镀膜? 是的,高纯铜丝是常见蒸发源材料。
是否容易氧化? 经防氧化处理后可长期保存。
是否支持定制直径? 支持0.05–5.0 mm定制。
是否具磁性? 无磁性。
是否附带检测报告? 提供纯度、密度与尺寸检测报告。
是否可卷盘包装? 可提供盘丝或切段形式。
可否用于电极? 是的,常用于电化学实验。
交货周期? 常规规格2–3周。
是否符合环保标准? 符合RoHS与REACH标准。

包装与交付

铜丝出厂前均经真空退火与表面检测。产品采用真空密封、防氧化、防潮包装,并放置于防震线盘或木箱内。附带RoHS、REACH、COC及材质分析报告,支持国际运输。

结论

铜丝(Cu Wire)以其优异的导电、导热性能与高纯度特性,广泛应用于电子、真空与科研领域。
如需了解更多技术参数或获取报价,请联系:sales@keyuematerials.com
