铌粉(Nb)

描述

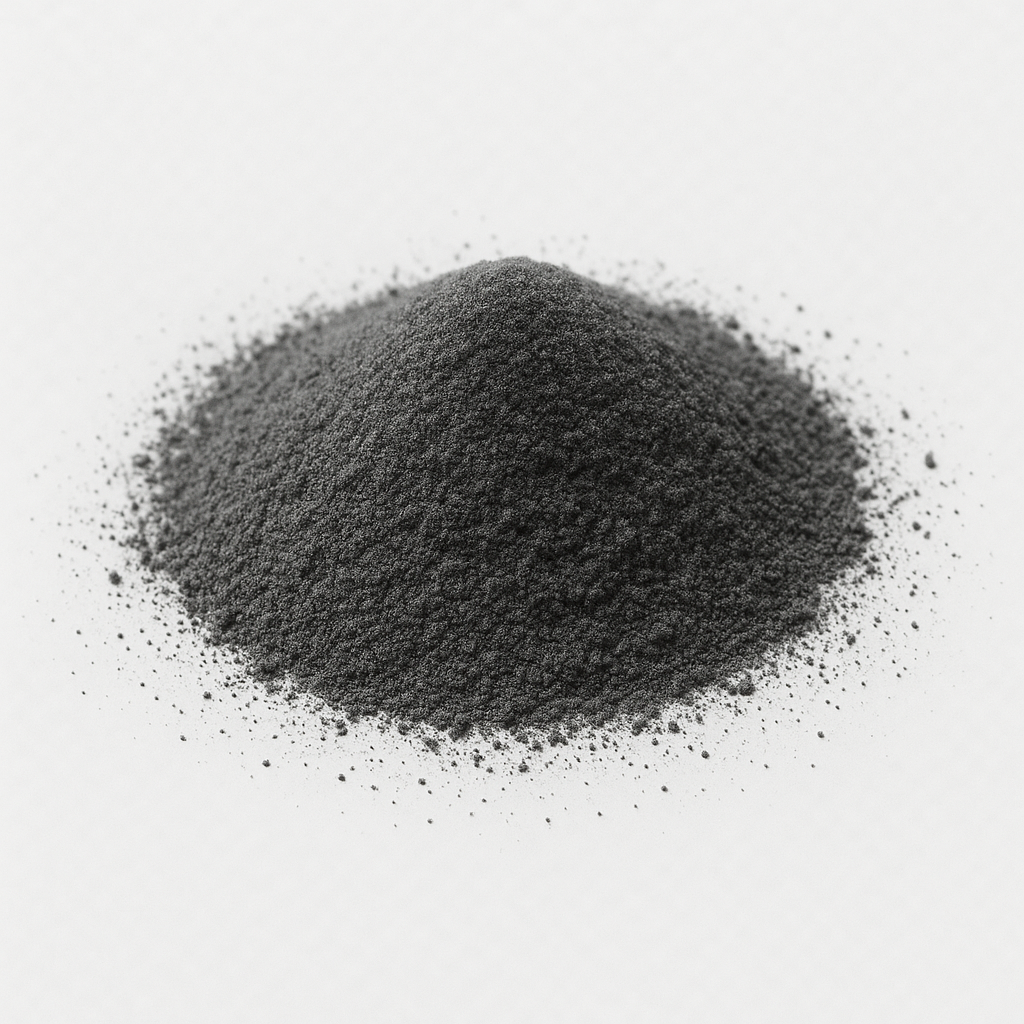

铌粉(Nb)

产品简介

铌粉(Niobium Powder,化学式 Nb)是一种具备 高熔点、高延展性与优异耐腐蚀性 的稀有金属粉末。
它广泛应用于 电子元件、超导材料、特种合金、真空镀膜与电容器制造 等高端领域。
凭借其优异的导电性与高温稳定性,铌粉成为航空航天、能源与科研领域的关键功能材料。

苏州科跃材料科技有限公司供应高纯度(99.5%–99.99%)铌粉,颗粒均匀、氧含量低、流动性良好,适用于烧结、涂层与粉末冶金加工。


产品详情

铌粉呈 深灰色至银灰色金属粉末,采用 电子束熔炼氢化脱氢法(HDH)或雾化法 制备。
其粉体结构致密、分布均匀,具备优良的烧结与塑性加工性能。

主要特点:

  • 高熔点(2477°C)与优异耐热性

  • 高纯低氧,适合真空及高温环境

  • 优良导电性与化学稳定性

  • 对酸碱环境有强抗腐蚀性

  • 适用于超导与电子器件制造。


应用领域

  • ⚙️ 粉末冶金与真空元件:制造铌坩埚、坩埚衬层、喷嘴及高温电极;

  • 💡 电子与电容器材料:用于钽铌电解电容器与薄膜电极;

  • 🧲 超导材料:用于 NbTi、Nb₃Sn 等低温超导线材;

  • 🔋 能源与真空镀膜:用于薄膜靶材与高真空设备结构件;

  • 🧪 科研与合金研发:用于 Nb-Zr、Nb-Ta 等高性能合金。


技术参数

参数 典型值 / 范围 重要性说明
化学式 Nb 高熔点稀有金属粉末
纯度 99.5% – 99.99% 高纯科研级
外观 深灰色金属粉末 均匀致密
粒径范围 1 – 45 μm(可定制) 影响烧结与涂层性能
制备方法 HDH / 雾化 氧含量低、形貌稳定
密度 8.57 g/cm³ 高密度金属
熔点 2477°C 超高温稳定性
电导率 6.7×10⁶ S/m 良好导电性
热导率 53 W/m·K 均匀散热性
氧含量 <0.1% 适合真空烧结应用

相关材料对比

材料 主要优势 典型应用
Nb(铌) 高熔点、超导特性 超导、电子、真空器件
Ta(钽) 极强耐蚀性 电极、电容器
Zr(锆) 稳定性高 核能与耐蚀材料
Nb-Zr 热强度高 超导与耐高温合金

常见问题(FAQ)

问题 答案
铌粉主要用途是什么? 用于超导线材、电容器、电极与合金制备。
是否具有磁性? 弱磁性,低温下可成为超导体。
是否可用于真空镀膜? 是的,常用于Nb靶材与导电膜制备。
熔点是多少? 约2477°C。
是否可用于3D打印? 可提供球形雾化铌粉,适配L-PBF工艺。
是否易氧化? 建议在惰性或真空条件下保存。
是否可定制粒径? 可提供1–100 μm不同规格。
是否环保? 无毒、可回收,符合RoHS与REACH。
是否可用于超导研究? 是的,Nb是低温超导核心材料。
包装方式? 真空密封、防潮铝箔袋或瓶装。

包装与交付

所有铌粉出厂前均经过 ICP 杂质检测、O/N 含量分析与XRD结构检测
采用 真空密封 + 防潮铝箔袋包装,防止氧化与污染。
提供 100 g、500 g、1 kg、25 kg 等规格,支持科研与批量供应。


结论

铌粉以其 高熔点、高稳定性与超导特性,在电子、能源与真空技术领域中发挥着关键作用。
苏州科跃材料科技有限公司可提供不同粒径、形貌与纯度等级的高性能铌粉,满足科研及高端制造需求。

📩 如需了解更多技术参数或获取报价,请联系:sales@keyuematerials.com
