钽粉(Ta)

描述

钽粉(Ta)

产品简介

钽粉(Tantalum Powder,化学式 Ta)是一种稀有高熔点金属粉末,具有 极强的耐腐蚀性、优异的导电性与高延展性
其化学稳定性极佳,能抵抗几乎所有酸类(除氢氟酸外),广泛应用于 电解电容器、真空镀膜、高温合金与医疗植入体 等高端领域。

苏州科跃材料科技有限公司供应高纯度(99.5%–99.99%)钽粉,颗粒分布均匀、氧含量低,可根据客户需求提供不同粒径与形貌。


产品详情

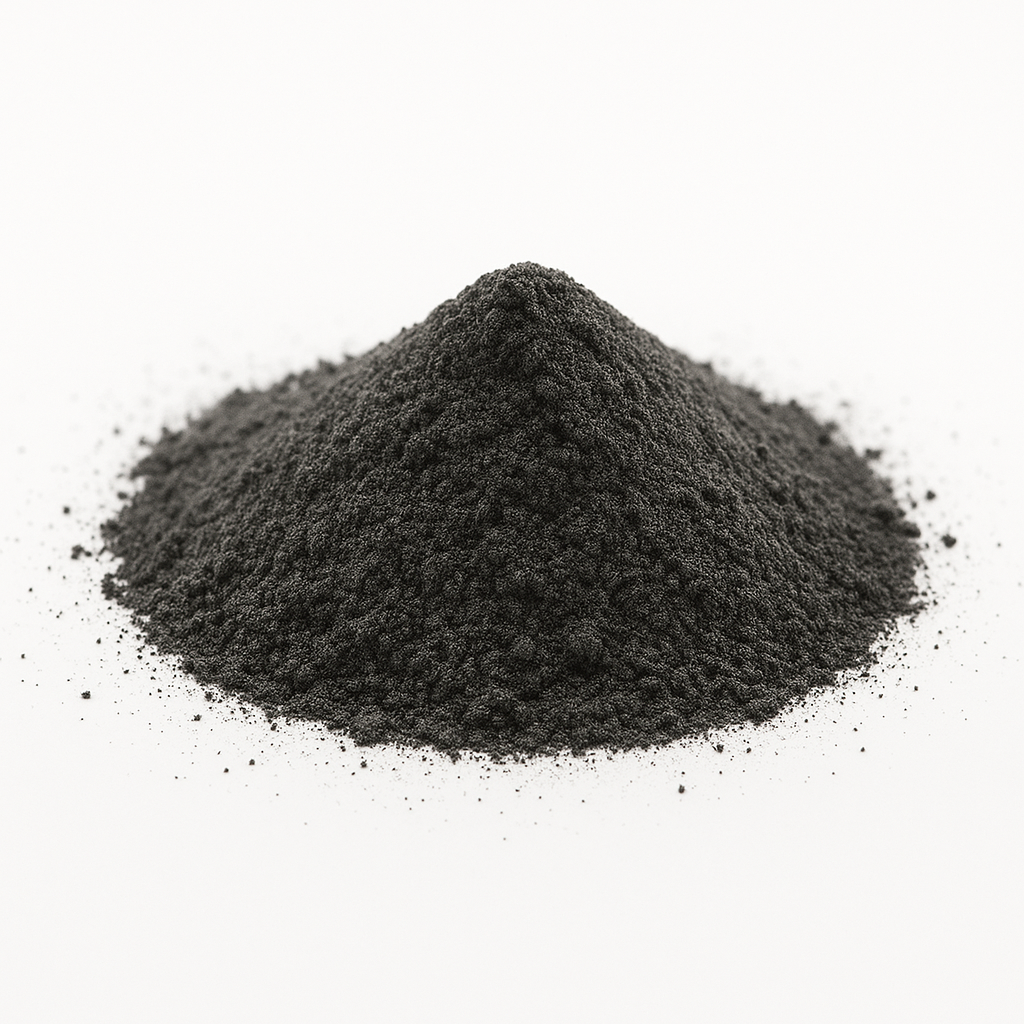

钽粉呈 灰黑色至深灰色金属粉末,采用 钠还原法、氢化脱氢法(HDH)或电子束熔炼雾化法 制备。
其粉末具有良好的烧结性能、延展性与导电性,是电子与真空工业中的关键原材料。

主要特点:

  • 高熔点(3017°C),热稳定性极佳

  • 抗强酸腐蚀(耐硫酸、硝酸、盐酸)

  • 优良的导电与导热性能

  • 高纯低氧,适合真空与电子器件

  • 塑性优良,易加工成丝、片、靶材等。


应用领域

  • ⚙️ 电子与电容器:制造钽电解电容器阳极粉与电极层;

  • 💡 真空镀膜与溅射靶:用于高纯薄膜制备与集成电路工艺;

  • 🔋 航空航天与高温合金:制备钽基及钽铌合金部件;

  • 🧲 医疗材料:用于外科植入体和耐腐蚀生物材料;

  • 🧪 科研与真空冶金:用于实验室高温坩埚与蒸发源。


技术参数

参数 典型值 / 范围 重要性说明
化学式 Ta 稀有高熔点金属
纯度 99.5% – 99.99% 高纯电子级
外观 灰黑色金属粉末 颗粒均匀
粒径范围 1 – 45 μm(可定制) 影响烧结密度与导电性
制备方法 HDH / 雾化 / 还原法 控制形貌与氧含量
密度 16.6 g/cm³ 高密度金属
熔点 3017°C 超高温金属
电导率 7.4×10⁶ S/m 导电性能优异
热导率 57 W/m·K 热稳定性强
氧含量 <0.1% 适合真空与电子用途

相关材料对比

材料 主要优势 典型应用
Ta(钽) 耐酸腐蚀、高熔点 电容器、真空镀膜
Nb(铌) 超导性能强 超导线材、电子元件
W(钨) 硬度高、耐高温 电极与加热元件
Ta-Nb 合金 强度与延展性平衡 航空与真空组件

常见问题(FAQ)

问题 答案
钽粉主要用途是什么? 电容器、电极、镀膜靶材与高温结构件。
是否具有磁性? 无磁性,适合医疗与电子用途。
是否可用于3D打印? 可提供球形雾化钽粉。
是否导电? 是的,钽具有优异导电性。
是否可与铌或钨合金化? 可形成TaNb、TaW等耐高温合金。
是否易氧化? 表面易形成Ta₂O₅薄膜,应惰性储存。
熔点是多少? 约3017°C。
是否环保? 无毒可回收,符合RoHS与REACH。
是否可定制粒径? 可提供1–100 μm不同规格。
包装方式? 真空密封、防潮铝箔袋或瓶装。

包装与交付

所有钽粉出厂前均经过 ICP 杂质检测、O/N 含量分析与XRD 晶相验证
采用 真空密封 + 防潮铝箔袋包装,确保在运输与储存中不氧化、不团聚。
提供 100 g、500 g、1 kg、25 kg 等包装规格,支持科研及批量生产供应。


结论

钽粉以其 超高熔点、优异耐蚀性与高电导性能,在电子、航空、真空及医疗领域中具有重要战略价值。
苏州科跃材料科技有限公司可提供多种纯度、粒径与形貌的高性能钽粉,满足科研与高端制造需求。

📩 如需了解更多技术参数或获取报价,请联系:sales@keyuematerials.com
