钼粉(Mo)

描述

钼粉(Mo)

产品简介

钼粉(Molybdenum Powder,化学式 Mo)是一种 高熔点、高强度与优异导电导热性能 的过渡金属粉末。
凭借其出色的机械性能与抗高温氧化特性,钼粉被广泛应用于 真空电子元件、加热元件、电极、喷涂涂层与高温合金 等领域,是先进制造与科研领域中不可或缺的关键材料。

苏州科跃材料科技有限公司提供高纯度(99.5%–99.99%)钼粉,颗粒均匀、流动性好、氧含量低,适用于粉末冶金、镀膜与3D打印等多种工艺。


产品详情

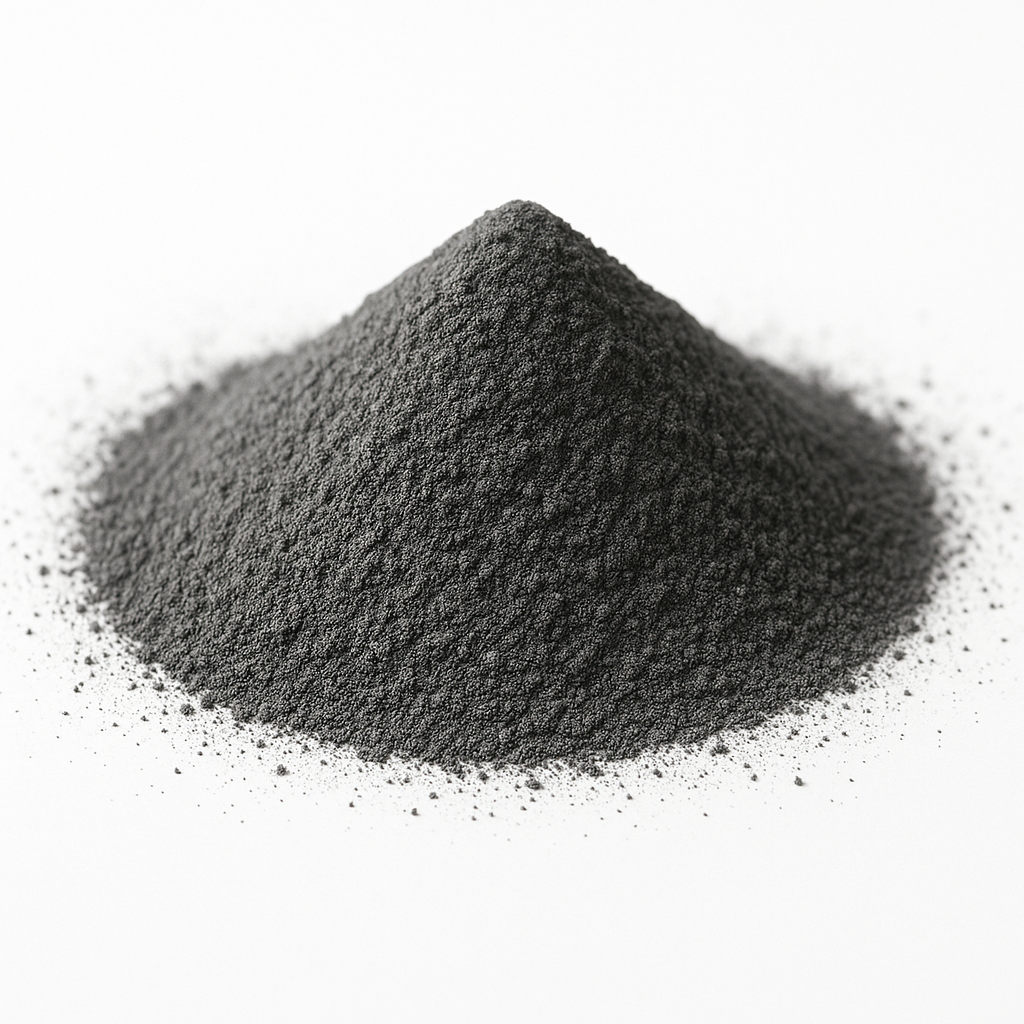

钼粉呈 深灰色金属粉末,通过 氢还原法或雾化法 制备,颗粒分布均匀、结构致密。
其粉体具有高纯度与优异的烧结活性,可在高温真空环境中稳定使用。

主要特点:

  • 高熔点(2623°C),耐高温性能优越

  • 良好的导电与导热性能

  • 化学稳定性高,不易氧化

  • 低氧含量,适合真空冶金环境

  • 可与钨、铼、钛等形成高温合金。


应用领域

  • ⚙️ 粉末冶金:用于钼片、钼棒、钼电极及高温结构件;

  • 💡 真空电子与加热元件:用于灯丝、热屏蔽与真空炉配件;

  • 🔋 能源材料:用于电极、电触点及导电部件;

  • 🧲 喷涂与涂层:用于耐磨、耐蚀金属涂层;

  • 🧪 科研与材料制备:用于溅射靶、蒸发源与合金粉体研究。


技术参数

参数 典型值 / 范围 重要性说明
化学式 Mo 高熔点金属粉
纯度 99.5% – 99.99% 高纯科研级
外观 深灰色金属粉末 均匀细腻
粒径范围 1 – 45 μm(可定制) 影响烧结密度与导电性能
制备方法 氢还原 / 雾化 控制氧含量与形貌
密度 10.22 g/cm³ 高密度金属
熔点 2623°C 热稳定性极高
电导率 1.9×10⁷ S/m 导电性能优良
热导率 138 W/m·K 高效散热能力
氧含量 <0.08% 保证真空稳定性

相关材料对比

材料 主要优势 典型应用
Mo(钼) 高熔点、导电性优 真空冶金、电极、加热元件
W(钨) 更高熔点、更硬 加热部件、屏蔽材料
Ta(钽) 耐腐蚀、延展性强 电容器与真空镀膜
Mo-Re 合金 抗蠕变性高 航空喷嘴与热电偶线

常见问题(FAQ)

问题 答案
钼粉的主要用途是什么? 用于电极、真空器件、高温结构件及涂层。
是否导电? 是的,导电性能优异。
是否具有磁性? 无磁性,适合电子与真空应用。
是否可用于3D打印? 可提供球形雾化钼粉,适用于L-PBF工艺。
是否易氧化? 高温下易氧化,建议真空或惰性气氛保存。
是否可定制粒径? 可提供 1–100 μm 的不同规格。
熔点是多少? 约 2623°C。
是否环保? 无毒、可回收,符合 RoHS 与 REACH。
是否可用于镀膜? 可,用作溅射靶或蒸发源粉体。
包装方式? 真空密封、防潮铝箔袋或瓶装。

包装与交付

所有钼粉出厂前均经过 ICP 杂质检测、O/N 含量分析与SEM 形貌测试
采用 真空密封 + 防潮铝箔袋包装,防止氧化与团聚。
提供 100 g、500 g、1 kg、25 kg 等规格,支持科研与工业批量供应。


结论

钼粉以其 优异的高温强度、导电导热性能与化学稳定性,在电子、能源与真空技术领域具有核心地位。
苏州科跃材料科技有限公司可提供多种纯度、粒径与形貌的高性能钼粉,满足科研与高端制造需求。

📩 如需了解更多技术参数或获取报价,请联系:sales@keyuematerials.com
