钼管(Mo)

高纯钼管具有极高熔点、优异导热性与低蒸气压,适用于真空炉、热处理、半导体和光学镀膜系统。纯度可达99.99%,结构致密、表面光洁,支持定制加工与科研应用。

描述

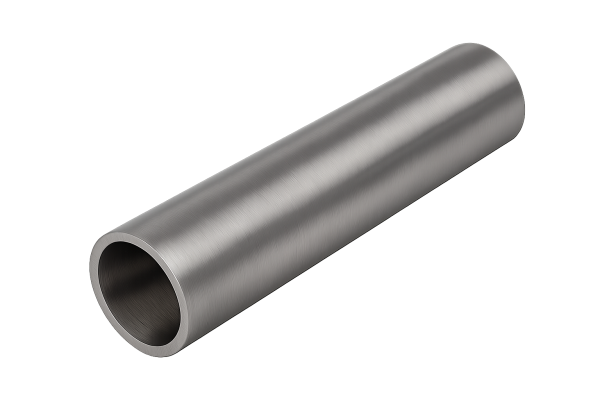

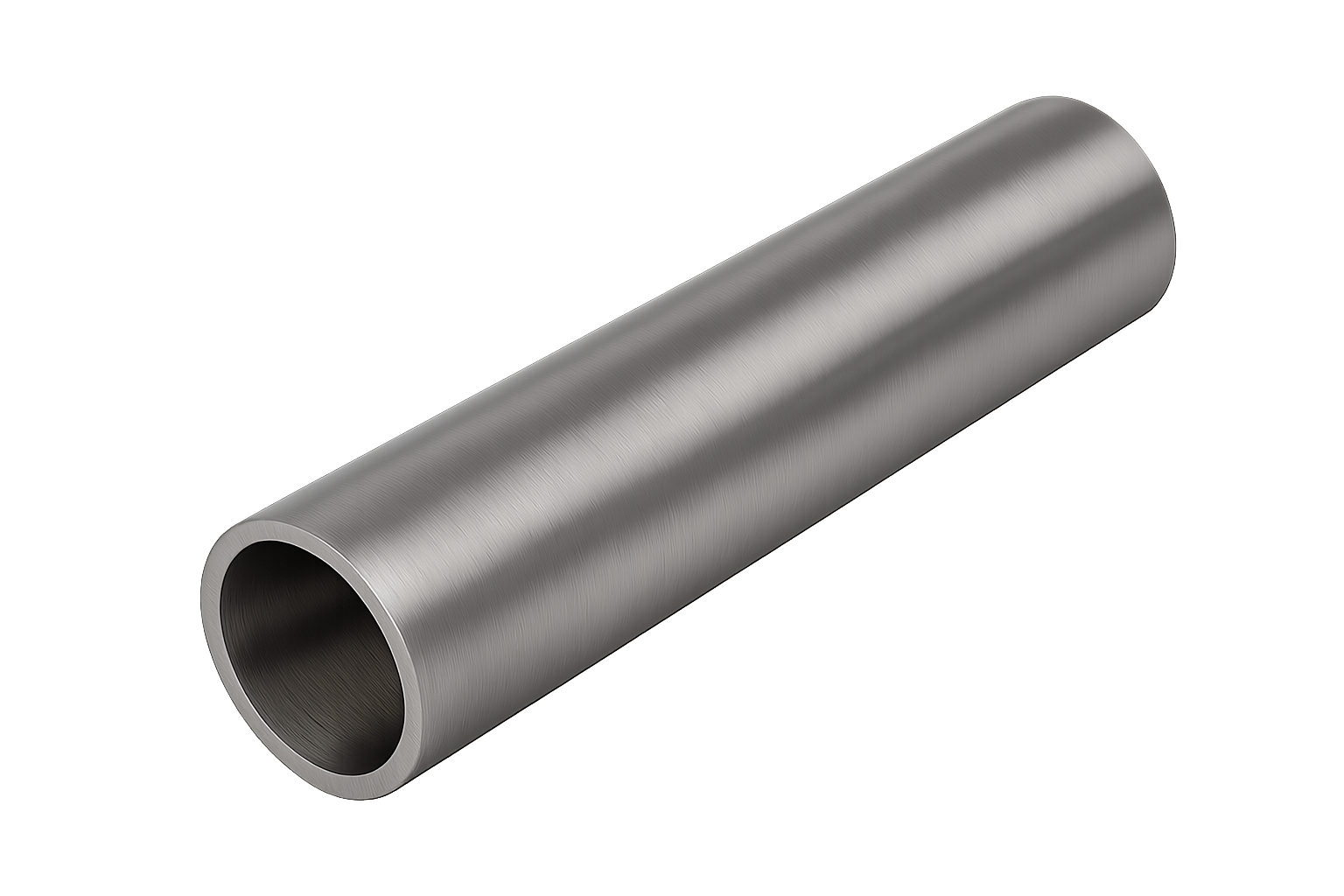

钼管(Mo Tube)

产品简介

钼管(Mo Tube)是一种由高纯钼(Purity ≥ 99.9%)制成的高温耐腐蚀金属管材,具有极高的熔点(2620°C)、优异的导热性与抗蠕变性能。钼在真空和惰性气氛中表现出极强的热稳定性,且具有较低的蒸气压,非常适合高温和真空环境使用。
高纯钼管广泛应用于真空炉、半导体设备、光学镀膜、热屏蔽及电子结构件等领域,是高温工程与薄膜技术中的关键材料。

产品详情

苏州科跃材料科技有限公司提供的钼管采用高纯钼粉经冷等静压(CIP)—真空烧结—热等静压(HIP)—精密加工工艺制备,组织致密、晶粒细小、表面光洁。产品符合 ASTM B387 标准,可选纯钼(Mo)或掺钾钼(Mo-La, Mo-K)。

典型规格如下:

  • 纯度等级:99.9%、99.95%、99.99%

  • 外径范围:3 – 100 mm

  • 壁厚范围:0.5 – 8 mm

  • 长度:≤2000 mm(可定制)

  • 制造工艺:CIP + 真空烧结 + HIP + 精密车削 + 抛光

  • 表面状态:银灰色金属光泽 / 抛光 / 去氧化膜

高纯钼管具有高导热率、低膨胀系数和良好的延展性,能在高温下保持极高的结构稳定性。

应用领域

钼管在高温和真空环境中广泛应用于:

  • 真空与热处理设备:用于加热元件、热屏蔽与反应管。

  • 半导体制造设备:用于PVD/CVD腔体内的导管和支撑结构。

  • 光学镀膜系统:用于蒸发源管与反射结构件。

  • 科研与实验装置:用于高温反应与材料烧结实验。

  • 冶金与能源领域:用于电极管、保护管及熔炼系统。

技术参数

参数 典型值 / 范围 说明
纯度 99.9% – 99.99% 高纯度确保高温稳定性
密度 10.2 g/cm³ 接近理论密度
熔点 2620 °C 可在高温环境长期使用
热导率 142 W/m·K 优异的导热性能
电导率 19 × 10⁶ S/m 稳定导电性能
抗拉强度 ≥600 MPa 高强度抗蠕变性能
热膨胀系数 4.8 × 10⁻⁶ /K 热变形小
工艺 CIP + HIP + 抛光 提高密度与表面质量

常见问题(FAQ)

问题 答案
钼管能否耐高温? 可在2000°C以上真空或惰性气氛中长期使用。
是否适合真空系统? 是的,钼蒸气压极低,非常适合UHV系统。
是否具磁性? 无磁性,适用于磁场敏感装置。
是否可电抛光? 可提供镜面、电解抛光或酸洗处理。
是否可焊接? 可采用电子束焊或真空钎焊。
可否制作薄壁管? 可定制最小壁厚0.5 mm。
是否提供检测报告? 每批产品附纯度、密度与尺寸检测文件。
可否定制长度? 支持≤2000 mm定制,长管需分段拼接。
是否可与其他金属复合? 可提供钼铜、钼钛等复合结构。
是否支持科研样品? 支持单件试制与批量供货。

包装与交付

每根钼管出厂前均经显微检测与真空退火。产品采用真空密封、防震、防潮包装,并装入出口级木箱。可提供RoHS、REACH、COC及材质分析报告,支持国际空运。

结论

钼管(Mo Tube)以其高熔点、良好的导热性和优异的真空稳定性,被广泛用于真空设备、半导体工艺及科研高温系统,是高端制造中的关键材料。
