金粉(Au)

描述

金粉(Au)

产品简介

金粉(Gold Powder,化学式 Au)是一种高纯度贵金属粉末,以其 优异的导电性、抗氧化性与化学稳定性 而著称。
作为高性能功能材料,金粉广泛应用于 半导体封装、微电子焊接、光学镀膜、精密仪器与科研实验 等领域,是制造高可靠性电子与光电器件的关键原料之一。

苏州科跃材料科技有限公司提供高纯度(99.99%)金粉,粒径可选(纳米至微米级),支持定制球形、片状与树枝状结构,满足不同导电、催化与镀膜工艺需求。


产品详情

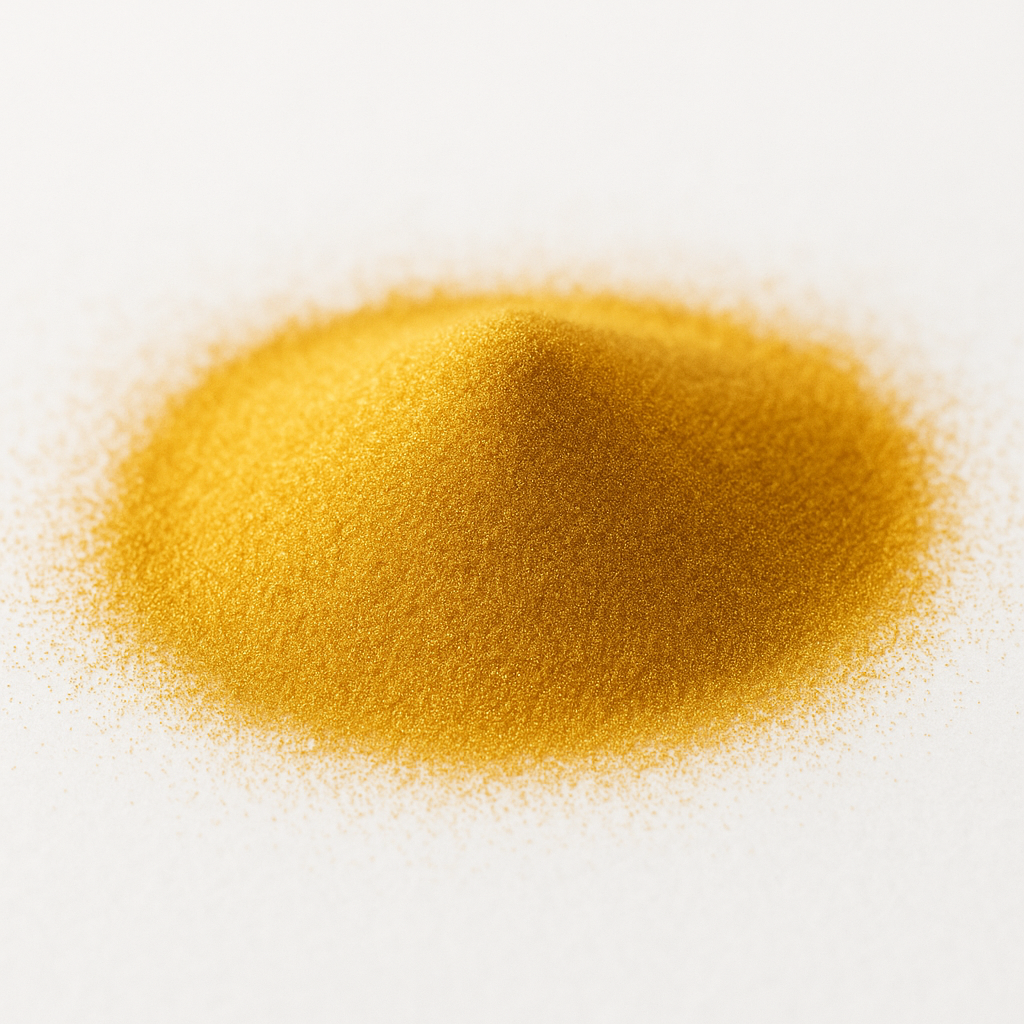

金粉呈 亮黄色金属粉末,光泽明亮,化学性质稳定,不与空气或水反应。
采用 化学还原法电解法 制备,具有高纯度与优异分散性。

主要特点:

  • 高导电率与高延展性

  • 耐腐蚀性极强,不被氧化或变色;

  • 优异反射性与热稳定性

  • 高纯度(≥99.99%),杂质含量极低;

  • 形貌可定制(球形 / 纳米 / 树枝状)


应用领域

  • ⚙️ 电子与半导体器件:用于金焊线、金锡焊料、芯片互连;

  • 💡 光学镀膜:用于高反射率红外镜与滤光器;

  • 🔬 催化与科研:用于贵金属催化剂与纳米结构研究;

  • 🔋 电极与导电浆料:用于高性能导电涂层与电接点;

  • 🧬 生物与医用材料:用于生物传感与金标免疫检测。


技术参数

参数 典型值 / 范围 重要性说明
化学式 Au 贵金属粉末
纯度 99.9% – 99.99% 光电级纯度
外观 亮黄色粉末 高纯特征
颗粒形貌 球形 / 片状 / 树枝状 可定制形态
平均粒径 0.1 – 10 μm(可提供纳米级 <100 nm) 影响导电性与分散性
密度 19.32 g/cm³ 高密度金属
熔点 1064°C 优异热稳定性
电导率 4.1×10⁷ S/m 稍低于银,但更稳定
热导率 317 W/m·K 优良导热性能
反射率 >95%(红外区域) 适用于光学镀膜

相关材料对比

材料 主要优势 典型应用
Au(金) 高导电、耐腐蚀、可焊性优 芯片互连、镀膜、电极
Ag(银) 导电性更高、成本低 导电浆料、焊料
Pt(铂) 耐高温、催化性强 电极、传感器
Cu(铜) 成本低、导电好 通用导线与电子件

常见问题(FAQ)

问题 答案
金粉的纯度是多少? 常见为 99.9% 或 99.99%。
是否导电? 是,金粉导电性极佳且长期稳定。
是否可用于镀膜? 可,用于反射镜、滤光片等光学薄膜。
是否可用于焊接? 可,与锡、铟等形成高可靠性焊料。
是否可制成纳米粉? 可提供 <100 nm 的纳米金粉。
是否易氧化? 不会氧化,表面稳定。
是否环保? 无毒、可回收,符合 RoHS 与 REACH 要求。
熔点是多少? 1064°C。
包装方式? 真空密封、防潮铝箔袋或玻璃瓶包装。
是否可用于科研? 是,常用于贵金属纳米研究与催化反应。

包装与交付

所有金粉出厂前均经过 ICP 杂质分析、XRD 晶相检测与粒径分布测试
采用 真空密封 + 防潮铝箔袋包装,保证粉体在运输与储存中的稳定性。
提供 1 g、5 g、10 g、100 g、1 kg 等规格,支持科研与工业批量交付。


结论

金粉凭借其 卓越的导电性、化学惰性与美观光泽,在电子、光学与高端科研中具有不可替代的地位。
苏州科跃材料科技有限公司可提供多形貌、多粒径的高纯金粉,满足精密制造与高科技应用需求。

📩 如需了解更多技术参数或获取报价,请联系:sales@keyuematerials.com
